Open Floor Grating

2023-12-05

PRODUCT DESCRIPTION

Steel grating is a type of grating made of steel bars or flat bar. The smooth surface contrast with serrated steel grating, which has a serrated surface. plain steel grating is the most widely used grating type, which is used in almost all of the applications

Steel Grating For Sale

Steel grating
Material	Plate, Roll
Material	Galvanized, carbon steel, stainless steel, etc.
Surface Treatment	Electric galvanized,hot galvanized
Length of Steel Grating	≥800mm
Cross Bar Spacing	50mm,100mm, etc.
Package details	Pallet packing; Strap packaging; Screw rod fixation

Common Specification Of Steel Grating
Material Standard	ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304, Mild steel & Low carbon steel, etc
Bearing Bar(width*thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment	untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Note: Special size and specification can be customized.

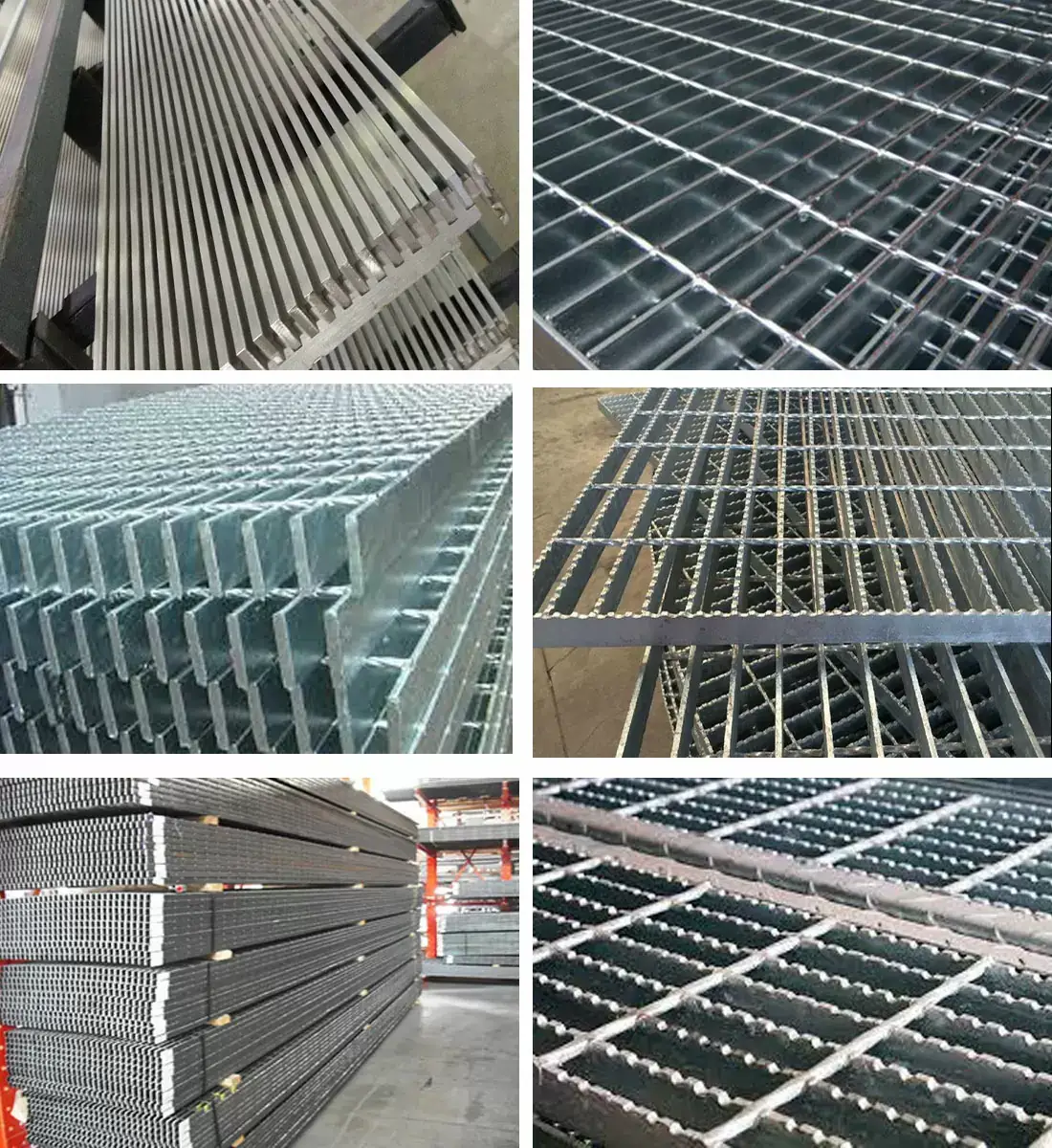

Product Display

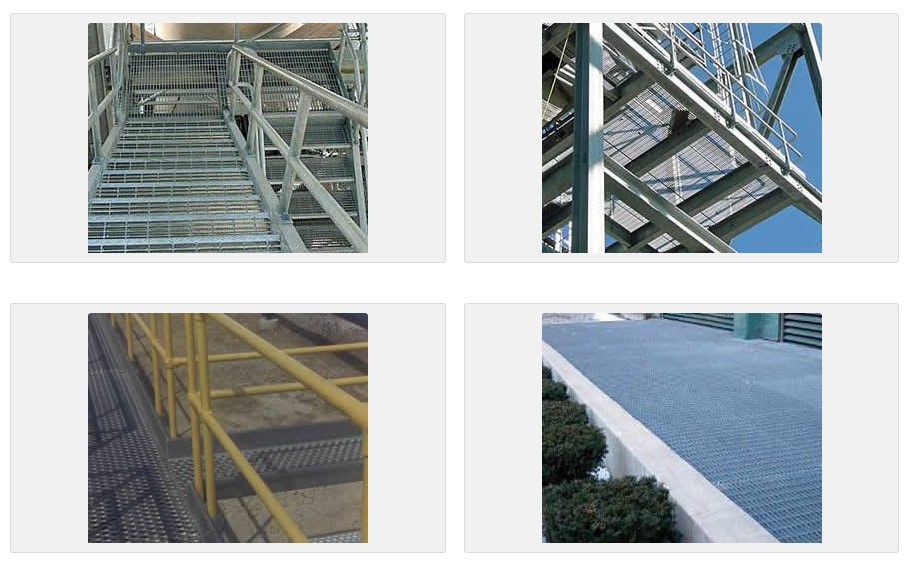

Application

We produce lots of Steel grating fence, Trench covers, Stair treads, Brand compound steel grating, platform plate, Heavy Duty grating, Press-locked grating ,Customized special shape, Perforated grating, Serrated grating, and Fixing Clips.

Our products are extensively applied in oil refinery,petroleum & chemical Industry, Seaport & airport, power plant, transportation, paper making, medicine, steel & iron, food, municipality, real estate, manufacturing, metallurgy, railway,boiler,military project,storage,etc.
